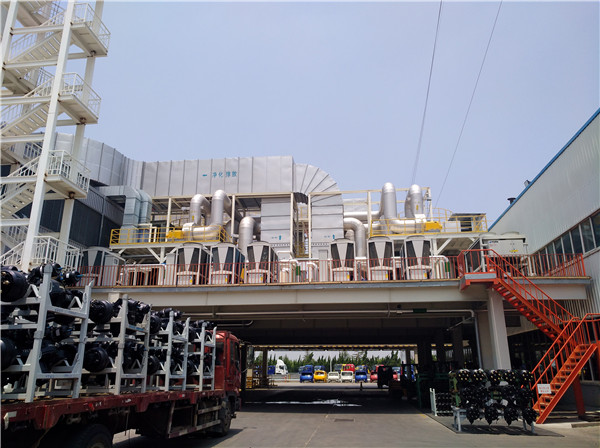

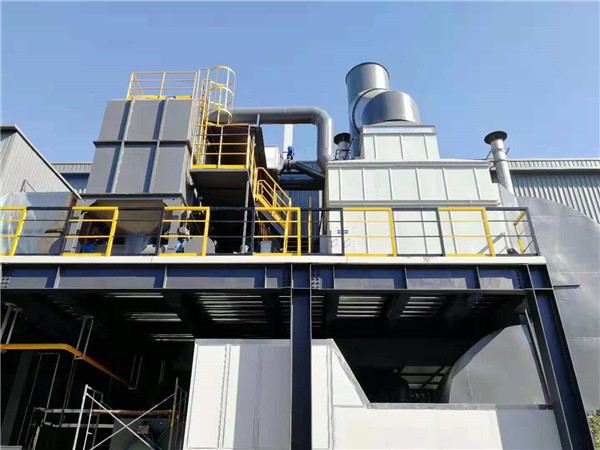

Zeolite wheel adsorption and concentration equipment
At present, the business of Baolan enterprise users mainly covers three major business areas:
Field 1: Electromagnetic De-white;
Field 2: Dedusting, desulfurization and denitrification;
Field 3: VOCS organic waste gas treatment.
TEL：+86-135-8959-1050
Product introduction
The zeolite rotary adsorption and concentration unit adopts three continuous procedures of adsorption desorption concentration incineration, which are mainly used for the treatment of organic waste gas; especially suitable for the occasion of large air volume and low concentration. The adsorption device takes ceramic fiber as the base material, and is made into a large disc wheel system with honeycomb shape, and the wheel surface is coated with hydrophobic zeolite as the adsorbent. Zeolite wheel adsorption and concentration device is mainly composed of waste gas pretreatment system, molecular sieve wheel concentration and absorption system, desorption system, cooling and drying system and automatic control system. Generally, there is a post-processing system behind the runner.

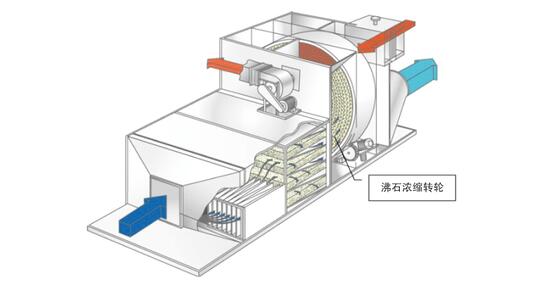

The main body of zeolite runner is a rotating wheel filled with adsorbent, which is divided into three areas, namely adsorption area, regeneration area and cooling area. The organic waste gas is introduced into the adsorption area by the blower, in which the organic pollutants are adsorbed and the gas is purified and discharged. Then, the adsorbent rotates to the regeneration area. In the process of contacting with high temperature air, VOCs is desorbed and flows out with the regeneration air. At the same time, the adsorbent is regenerated. After regeneration, the adsorbent is cooled in the cooling area, and then rotated to the adsorption area for adsorption again. With the rotation of the runner, the adsorbent periodically adsorbs, desorbs and cools to realize the purification of organic waste gas.
1. High efficiency of adsorption and desorption.
2. The pressure drop caused by VOCs adsorption by zeolite runner is very low, which can greatly reduce power consumption.
3. Convert the original VOCs waste gas with high air volume and low concentration into the waste gas with low air volume and high concentration, with the concentration ratio reaching 5-20 times, greatly reducing the specification of the post-treatment equipment and lower operation cost.
4. The whole system adopts modular design, with minimum space requirements, and provides continuous and unmanned control mode.
5. System automatic control, single key start, simple operation, and it can be used with human-computer interface to monitor the operation data.
