Biomass Gasifier

Technology Introduction

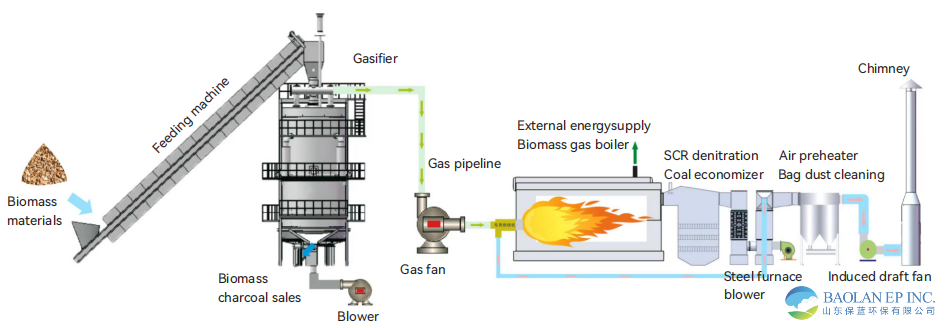

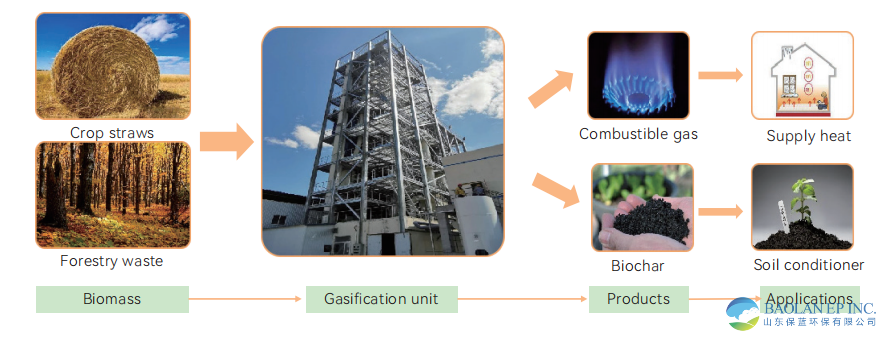

The output of biomass resources in China is about 3.5 billion t/y, which is dominated by agricultural and forestry biomass. At present, it is based on  direct-fired power generation. With the reduction of national subsidies, biomass gasification heating technology is more and more widely applied, which is  suitable for small-scale decentralized heating in towns and industrial parks. Biomass first undergoes gasification reaction in a gasifier to produce combustible gas, tar and biochar. Combustible gas and tar are sent to a gas-fired boiler for burning and heating through a gas fan, and biochar can be sold as soil  conditioner, fertilizer and the like. The flue gas after combustion can meet the ultra-low emission requirements (particle <10mg/Nm3, SO2<35mg/Nm3,  NOx<50mg/Nm3) after being denitrated by medium temperature SCR, economizer, air preheater and bag dust collector.



Technical advantages

① Simple process and short procedures

② Reliable equipment and small floor area

③ Mature equipment,  low investment,  stable operation and  low maintenance cost.

④ Simple operation and low cost

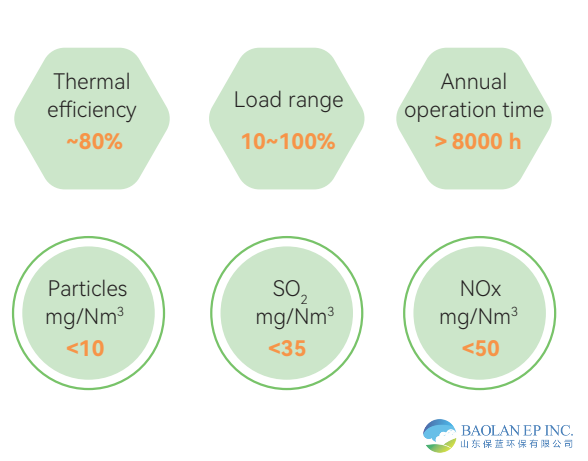

Key parameters
